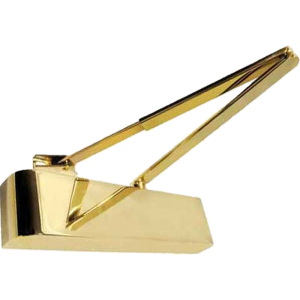

Door Control Closer Size 2-4 Polished Brass
This slimline overhead door closer with matching arms in a bright polished brass finish, certified to BS-EN1154, CE marked, and suitable for FD30/FD60/FD120 fire door applications.
The power size is EN 2-4, suitable for doors with a combined mass of 80kg, and up to 1100mm in width. It also features adjustable; closing speed, latch action, delayed action, and backcheck. See image 3.
The universal fitting allows for Fig 1. (standard door leaf installation to the pull side) Fig 61. (overhead door frame installation to the push side), and Fig 66 (parallel arm installation fitted to the door on the push side). See image 4.
