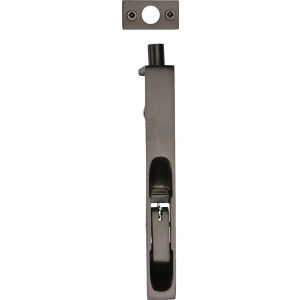

6" x 3/4" Inch Lacquered Brushed Matt Bronze Flush Fitting Door Bolt
This premium UK quality lever action flush fitting door bolt from the Heritage collection in a superior lacquered brushed satin bronze finish that provides a modern contemporary look. The face fitting screw is hidden under the lever when in the locked position for a neat plush look.
This flush bolt is 154mm long by 19mm wide, the angled return plate is 37mm deep. The 11mm diameter bolt projection is 14mm with the bolt centre being 18mm from the front face. The keep is 39mm x 20mm, the bolt hole is 12mm in diameter, and the screw centres are 25mm.
Flush bolts are typically installed on the top and bottom leading edge of the slave door in French doors and double doors installations, they can also installed in the door face on single doors (40mm door or thicker) for added security.
This flush bolt will require a 26mm x 19mm recess to allow for the mechanism to operate freely, and is supplied complete with keep and colour matched screw fixings.
PRO TIP: Use the additional hardened steel screw to ensure the pilot holes are the correct size to prevent rounding off the fixing screw heads (especially important in oak and other hardwood doors). Make sure any bare wood exposed by cutting or machining is properly sealed with high quality solvent based paint or wood-stain to prevent any moisture ingress that may lead to associated issues.
