145mm Softwood FD30 Fire Door Casing Untrenched 838
Click an image to enlarge.
Images for illustrative purposes only.

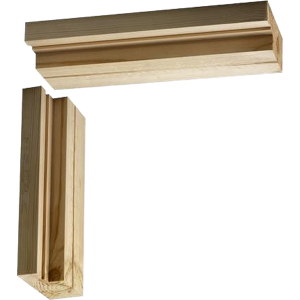

Un-Trenched Softwood FD30 Door Casing Frame Kit
This Certifire approved FD30 door casing is suitable for 44mm thick imperial and metric fire doors up to 33" inches (838mm) wide by 1981mm high. A simple construction can be achieved by notching the head stops at the required position to allow the jambs to be fixed in place.
This interior fire door casing is suitable for walls up to 145mm thick, the door jambs are 42mm thick and features 1/2" inch rebated door stops, and a routed channel to accept 15mm wide intumescent strips.
Please note sizes quoted are nominal and subject to manufacturing tolerances, if your sizing is crucial please contact out technical team for assistance.
145mm Softwood FD30 Fire Door Casing Untrenched 838
145mm Softwood FD30 Fire Door Casing Untrenched 838 Specifications:
Brand: Excel Joinery
Frame height: 2025 mm
Frame width: 904 mm
Finish: Unfinished Ready To Decorate
Fire Rating: 30 Minutes
Fire Rating FD30 - 30 Minutes: yes
Leadtime: 2-10 Working Days
Material: Softwood
PEFC Accredited: yes
Product Type: Door Frame
Cat No: DFR3235
