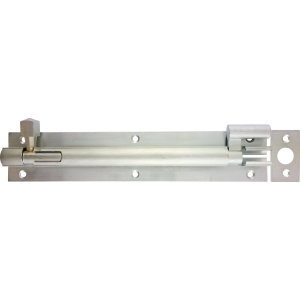

203mm x 38mm Architectural Necked Barrel Bolt Satin Chrome
Click an image to enlarge.
Images for illustrative purposes only.
8" Inch Satin Chrome Necked Barrel Bolt
This architectural 203mm necked barrel bolt is a premium quality heavy duty necked door bolt with a brushed satin chrome finish. This 8 inch cranked bolt will add a quality feature and provide additional security to any door. Necked barrel bolts are usually fitted to the inside face of a door that opens away from you.
Heavy Duty Satin Chrome Necked Barrel Bolt
This 8 inch necked bolt features a square button, the back plate measures 203mm long by 38mm wide. The bolt has a maximum projection of 20mm and the neck extends the centre of the 11mm diameter bolt 25mm above the mounted surface, the keep is 22mm by 40mm. A spring loaded ball bearing is fitted in the bolt to retain the bolt in position and prevent rattle.
203mm Satin Chrome Necked Barrel Bolt
This satin chrome necked bolt is quick & easy to install and supplied complete with all fixings and keep.
203mm x 38mm Architectural Necked Barrel Bolt Satin Chrome
203mm x 38mm Architectural Necked Barrel Bolt Satin Chrome Specifications:
Brand: Design Hardware
Colour: Silver
Size: 8 Inches
Finish: Satin Chrome
Leadtime: 2-5 Working Days
Material: Brass
Net Weight: 0.35 KG
Product Type: Door Bolt
Cat No: FHW-J1002SC-8
